1. In ultrasonic diagnosis and treatment operations, it is used together with intracavitary or extracorporeal ultrasonic probe to guide and fix biopsy needle guide and other puncture instruments.
2. Open the clamp, align the puncture rack and the positioning mark of the probe, and press it to place it on the probe, and lock the upper and lower clamps
(or elastic fastening) nature.
3. After checking that the biopsy needle guide has been firmly installed, the biopsy needle guide can be inserted into the guiding structure for puncture operation.Please refer to the instruction manual or installation drawing.

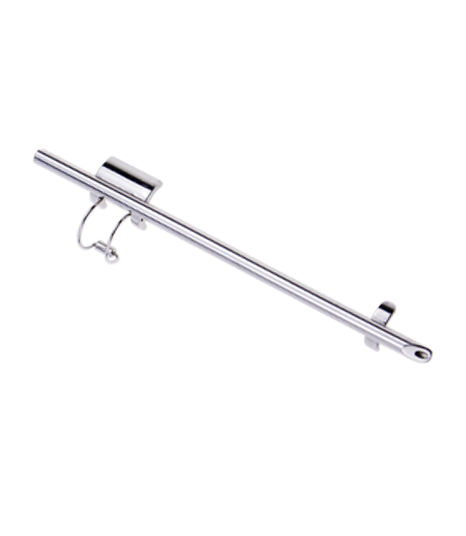

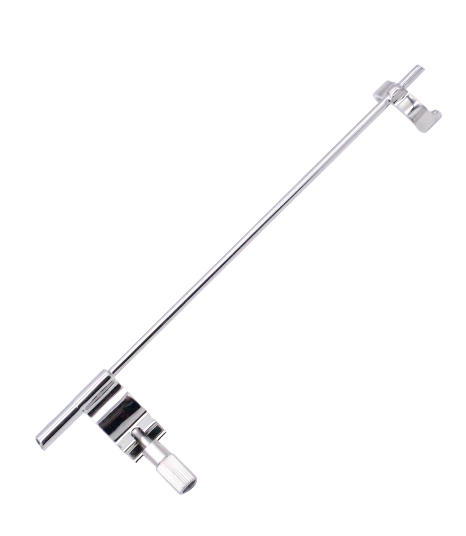

Suitable for Philips C8-4v \ C9-3v \ C10-3v ultrasonic probes
1. Soak the biopsy needle guide for at least five
minutes in a low-foam enzyme cleaner with neutral pH.
2. When soaking, use the instrument brush to remove
residual contaminants on the surface and parts.
If visible contaminants are not easily removed,and
repeat soaking procedure.
3. Remove the biopsy needle guide from the cleaning
solution and use it with a rag to wipe off all residues.
4. Can be steamed (autoclave) at 132-138℃ for
15 to 30 minutes,Sterilize or sterilize the biopsy
needle guide.
Outpatient service, stomatological hospital, medical beauty institution, social health hospital
Usage scenario
